E3V - S (demountable)

E3V-S*
E3V - S (demountable)
E3V - S (demountable) E3V - S (demountable)

  • General characteristics

    The CAREL E3V electronic expansion valves cover a range of cooling capacities up to 180kW, and represent the Carel solution for medium-capacity valves.
    The E3V has been designed with special care to the minimum details, so as to ensure a wide control capacity and at the same time guarantee high reliability with fluid flow in both directions: the latter feature is especially useful and advantageous for heat pump applications.
    This product has been designed to be installed as the expansion valve in refrigerant circuits, and uses a pressure probe and temperature probe to calculate superheat, which is used as the control signal.

    The E3V-Smart version brings improved performance to the vast range of E3V series products, thanks to the new composite movable element and the addition of a filter to protect the gasket. This solution ensures significant improvements in performance, as well as the possibility to operate at refrigerant temperatures up to 100 °C. Sizes 55 and 65 are fitted with two-pole motors, while size 35 has a single-pole motor; size 45 can be equipped with either.

    Resistance to high temperatures offers completely new opportunities for hot gas injection applications, with a new model called "E3V-H Smart HOT GAS" also available, in sizes 45, 55, 65.



Documentation

Technical

  • Technical Leaflets
    Code Description Language Date * Release
    Code +050001565

    Description E3V-S - Valvola di espansione elettronica / Electronic expansion valve / Détendeur électronique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    Language CHI  ENG  FRE  GER  ITA  SPA

    Date 06/11/2024

    Release 2.5


Commercial

  • Other related documentation
    Code Description Language Date * Release
    Code +800004031

    Description Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving

    Language ENG

    Date 05/04/2023

    Release 1.2


Images

  • High resolution images
    Code Description Language Date * Release

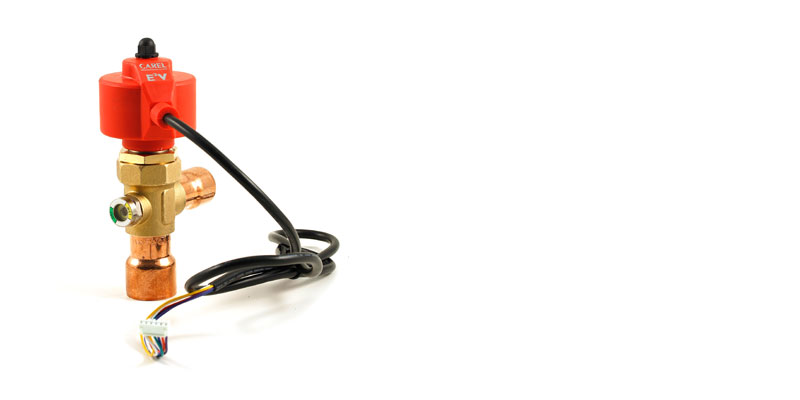

    Code PH13LE3303-E3V-SMART-unipolar

    Description CAREL E3V - S (demountable) - Electronic expansion valve - ExV - EEV Technology

    Language ALL

    Date 11/03/2022

    Release R.0

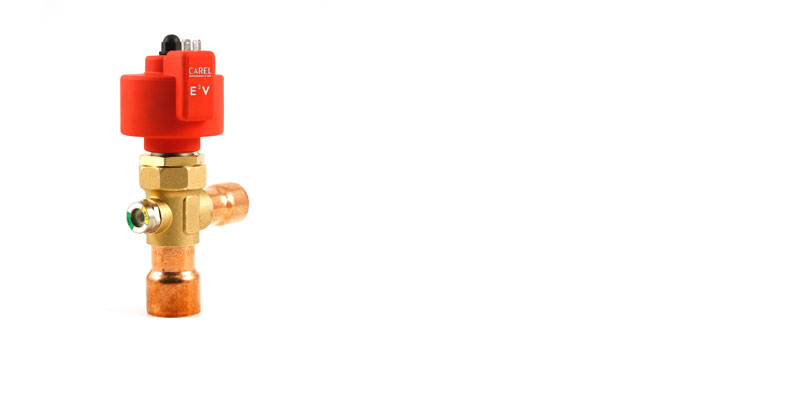

    Code PH13LE3301-E3V-SMART

    Description CAREL E3V - S (demountable) - Electronic expansion valve - ExV - EEV Technology

    Language ALL

    Date 11/03/2022

    Release R.0
