EVD Evolution Twin

EVD0000T**
EVD Evolution Twin
  • General characteristics

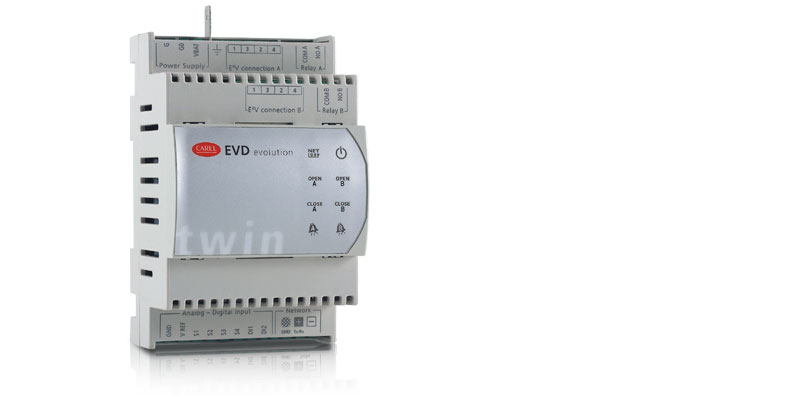

    EVD Evolution Twin is a controller comprizing two drivers for two-pole stepper motors that can independently manage two electronic expansion valves.

    The device is designed for DIN rail mounting and comes with plug-in screw terminals. Each driver can control refrigerant superheat and optimise refrigerant circuit performance, and at the same time guarantee maximum system flexibility, being compatible with various types of refrigerants and valves, in applications that use chillers, air-conditioners and refrigeration units, including subcritical and transcritical CO2 systems.

    Main functions:

    • independent management of two electronic expansion valves;
    • superheat control with high pressure, low pressure and low superheat protection;
    • special functions such as hot gas bypass, evaporator pressure regulation (EPR) and control of the valve downstream of the gas cooler in transcritical CO2 circuits;
    • superheat control optimization for air-conditioning units fitted with digital scroll compressors, when suitably connected to a specific CAREL controller via LAN, with the possibility to activate one or more tuning procedures;
    • assisted start-up procedure, selecting just 4 parameters (or just three if using the device to control Carel valves);
    • removable graphic LCD, multi-language interface with online help for the parameters and SI or imperial units of measure;
    • copy configuration parameters from one EVD Evolution Twin controller to another from the removable display;
    • user management with password to access different configuration levels;
    • use of low-power ratiometric pressure transducers with 4 to 20 mA output (these can be shared between up to 5 drivers), useful in multiplexed applications;
    • advanced alarm management.





Documentation

Technical

  • 2D/3D drawings
    Code Description Language Date * Release
    Code EVD Evolution Twin

    Description 2D-3D drawings

    Language ALL

    Date 17/03/2023

    Release R0

    Code EVD Evolution Twin w Display

    Description 2D-3D drawings

    Language ALL

    Date 09/03/2023

    Release R0

  • Manuals
    Code Description Language Date * Release
    Code +0300006ZH

    Description EVD evolution twin 用户手册 1个驱动器控制2个电子膨胀阀

    Language CHI  ENG

    Date 24/01/2024

    Release 2.10

    Code +0300006EN

    Description EVD evolution twin Driver for 2 electronic expansion valves

    Language ENG

    Date 24/01/2024

    Release 2.10

    Code +0300006ES

    Description EVD evolution twin driver para 2 válvulas de expansión electrónica

    Language SPA

    Date 24/01/2024

    Release 2.10

  • Technical Leaflets
    Code Description Language Date * Release
    Code +050004170

    Description EVD*T*, EVDIS* - EVD evolution TWIN- Driver per 2 valvole di espansione elettronica e display grafi co/ 2 electronic expansion valves driver and graphic display

    Language CHI  ENG  ITA  RUS

    Date 20/10/2023

    Release 1.9

    Code +050004171

    Description EVD*T*, EVDIS* - EVD evolution - Electronic expansion valve driver and graphic display

    Language FRE  GER  POR  SPA

    Date 20/10/2023

    Release 1.9


Commercial

  • Application Note
    Code Description Language Date * Release
    Code +4000009EN

    Description A scientific approach applied to intuition

    Language ENG

    Date 11/02/2011

    Release 1.0

    Code +4000009ES

    Description Aproximación científica aplicada a la intuición

    Language SPA

    Date 11/02/2011

    Release 1.0

    Code +4000009FR

    Description Approche scientifique appliquée à une hypotèse

    Language FRE

    Date 11/02/2011

    Release 1.0

  • Brochure
    Code Description Language Date * Release
    Code +302240521

    Description EVD evolution Drive the power easily

    Language ENG

    Date 16/09/2009

    Release 2.0

    Code +302240531

    Description EXV Sistema, Precision mechanics, powerful control

    Language ENG

    Date 16/09/2009

    Release 2.0

    Code +302240532

    Description Système EXV, Mécanique de précision, puissance du contrôle

    Language FRE

    Date 16/09/2009

    Release 2.0

  • Other related documentation
    Code Description Language Date * Release
    Code +800004031

    Description Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving

    Language ENG

    Date 05/04/2023

    Release 1.2

  • Success Story
    Code Description Language Date * Release
    Code +402200211

    Description Marketing News - Bitzer CO2 laboratory and training centre managed by CAREL

    Language ENG

    Date 18/03/2009

    Release 1.0

    Code +402200216

    Description MARKETING NEWS TRANSCRITICAL SPACE

    Language ENG  ITA

    Date 18/03/2009

    Release 1.0


Images

  • High resolution images
    Code Description Language Date * Release
    Code PH09LEV301-EVD-evo-twin

    Description CAREL EVD Evolution Twin - Expansion valve driver - EEV Technology

    Language ALL

    Date 11/03/2022

    Release R.0
