EVD ice

EVDM011R* EVDMU00R**
EVD ice
  • General characteristics

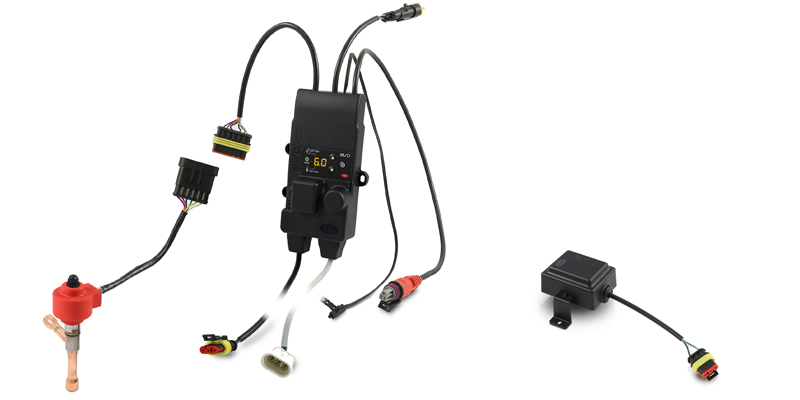

    EVD ice is the new control solution for CAREL ExV proportional electronic expansion valves that can be installed directly on the evaporator, thanks to its revolutionary design intended specifically for low temperature conditions, such as Walk-ins and other applications.
    EVD ice is especially suited to installation in the factory, since all accessory equipment is pre-cabled, including the stator for the electronic expansion valve and the sensors.
    This makes all of the benefits in performance and energy savings available, without the need for cabling, welding or complex configuration, while offering the quality and reliability of a factory tested and installed solution.
    EVD ice can also be integrated with CAREL systems such as Ultracella. Furthermore, EVD ice is designed to be compatible with third party regulations and control solutions using standard communication protocols, or it can work as a standalone solution for refrigeration cells and other applications in which compactness and versatility are key.
    The system is rounded by the UltraCap option, which ensures the safety of the refrigeration system in case of power failure, as well as its compatibility with natural and eco-friendly refrigerants, including modern HFO's.
