Differential air pressure switch DCPD*

DCPD*

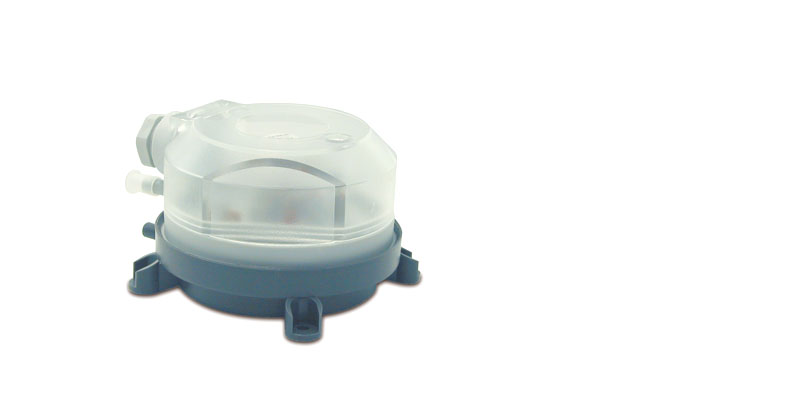

Differential air pressure switch DCPD*

  • General characteristics

    The differential air pressure switch DCPD* is used to control the differential pressure of the air for filters, fans, air ducts, air-conditioning and ventilation systems. This pressure switch is especially suitable for control and safety functions in air-conditioning systems, providing the fan stop signal and dirty filters signal.



Documentation

Technical

  • 2D/3D drawings
    * Entries are ordered by date
    Code Description Language Date * Release
    Code 2d-3d Differential pressure switches

    		 Description 2D-3D drawings

    		 Language ALL

    		 Date 08/03/2021

    		 Release R0

  • Technical Leaflets
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +050000645

    		 Description DCPD0**100 Pressostato differenziale aria / Differential air pressure switch

    		 Language ENG  ITA

    		 Date 06/02/2019

    		 Release 1.5


Commercial

  • Other related documentation
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +800004031

    		 Description Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving

    		 Language ENG

    		 Date 05/04/2023

    		 Release 1.2


Images
