MPXzero
General characteristics
MPXzero is the series especially developed for the complete control of entry-level plug-in units or multiplexed units.
In addition to the standard management of a refrigerated cabinet (control, defrosting, fans and lights), it has the following strengths:
- the management of main/secondary local networks or VCC compressors (in frequency or serial mode);
- the ease of use of a typical plug-and-play product, without the need to add external modules;
- captivating ‘Made in Italy’ aesthetics for more modern units, both in terms of appearance and functions.
The user experience is fundamental and is always at the centre of the product. Wireless connectivity (NFC, Bluetooth) via smartphone applications extends the traditional user interface from the actual display to the user’s mobile device, simplifying day-to-day tasks.
-
Plus
Immediate integration into BMS systems
The BMS serial port can be used connect directly to supervisory systems, without needing an external converter.
Local network management
The Fieldbus serial port can be used to synchronise actions (such as defrosts and lights and share probes) between uniform groups of cabinets.
Management of variable-speed compressors
The plug-in unit can control a VCC compressor (in frequency or serial mode) or manage two ON/OFF compressors with an activation delay.
Touchscreen display and real-time interaction
The capacitive display, the wide viewing angle and the frameless and linear design improve the aesthetics of the units. All this, plus the app for mobile devices, make access to control information, documentation and operating conditions intuitive and immediate.
Documentation
Technical
-
2D/3D drawings
* Entries are ordered by date
Code Description Language Date * Release Code 2d - 3d MPXzero Built in Small ESTRAIBILI+OPZIONE RS485 Description 2d - 3d MPXzero Built in Small ESTRAIBILI+OPZIONE RS485 Language ALL Date 06/12/2021 Release R0 -
Manuals
* Entries are ordered by date
Code Description Language Date * Release Code +0300106ES Description MPXzero Controlador electrónico para aplicaciones de refrigeración Language SPA Date 29/11/2021 Release 1.0 Code +0300106EN Description MPXzero Electronic controller for refrigeration applications Language ENG Date 29/11/2021 Release 1.0 -
Technical Leaflets
* Entries are ordered by date
Code Description Language Date * Release Code +0500154IE Description MPXzero-Vcc Language ENG ITA Date 06/03/2023 Release 2.0 Code +0500153IE Description MPXzero Language ENG ITA Date 06/03/2023 Release 2.0
Commercial
-
Brochure
* Entries are ordered by date
Code Description Language Date * Release Code +3000163ES Description MPX - Conectividad total y alta eficiencia para la gestión completa de unidades de refrigeración de supermercado Language SPA Date 29/05/2025 Release 3.5 Code +3000163EN Description MPX - Total connectivity and high efficiency for the complete management of supermarket refrigeration units Language ENG Date 29/05/2025 Release 3.5
Images
-
High resolution images
* Entries are ordered by date

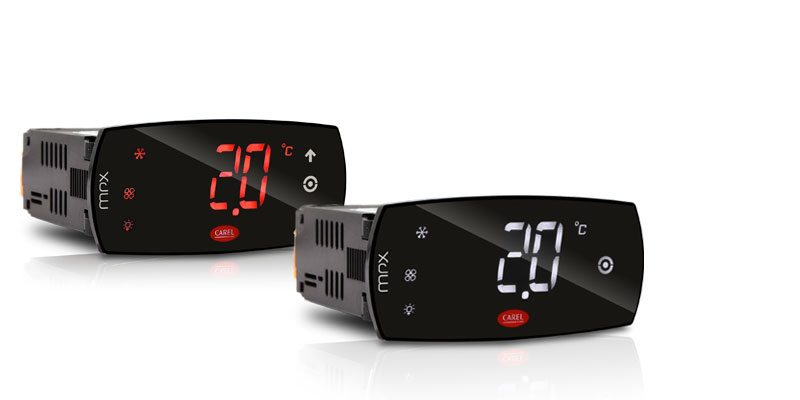

Code Description Language Date * Release Code PH20LS0304-MPXzero-Frontal-red Description MPXzero-CAREL-Food Retail-Solutions for cabinets and cold rooms Language ALL Date 03/09/2021 Release R.0 Code PH20LS0302-MPXzero-red Description MPXzero-CAREL-Food Retail-Solutions for cabinets and cold rooms Language ALL Date 03/09/2021 Release R.0
