humiSteam Basic

UEY*
humiSteam Basic
humiSteam Basic humiSteam Basic humiSteam Basic

  • General characteristics

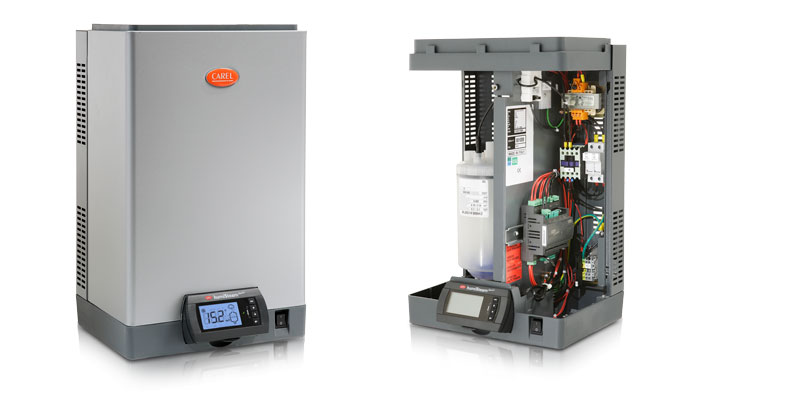

    humiSteam basic (Y) is suitable for installation in civil environments, offices, hospitals and industrial facilities, and is designed for installation both in rooms, using the steam blower, and air ducts, using the linear steam distributors.
    humiSteam basic is ideal for applications where steam production is controlled by an external signal, i.e. BMS or humidistat, and comes in a range from 3 to 143 lb/h.
    Steam production is controlled by an external signal:
    • ON/OFF mode: a simple contact (for example, a humidistat) starts/stops steam production.
    • proportional mode: the humidifier produces a quantity of steam that is directly proportional to the signal (0-10 V, 2-10 V, 0-20 mA, 4-20 mA) generated by the external controller, always between 20% and 100% of maximum capacity.

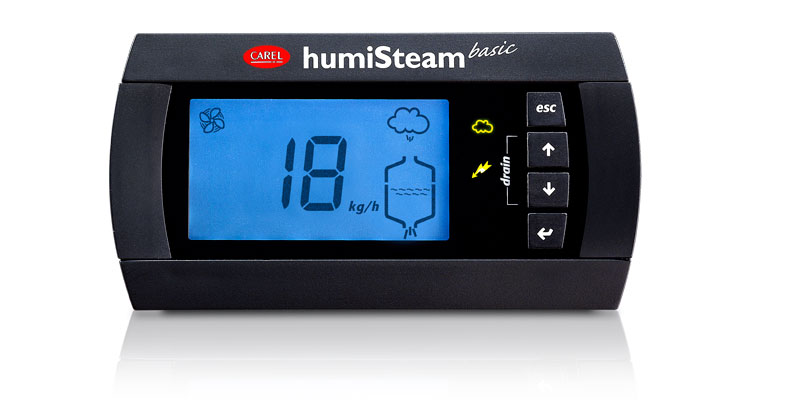

    Type "Y" humidifiers have a display with numbers and icons that shows the operating conditions and any diagnostic information extremely clearly and intuitively.
    In addition, they come with RS485 interface with Modbus protocol for remote configuration and control via BMS.
  • Plus

    • AFS system (Anti Foaming System): detects foam to prevent droplets of water being carried by the steam;
    • cylinders with galvanized electrodes and anti-scale filter at bottom, openable cylinders also available;
    • steam production with continuous modulation from 20% to maximum rating ;
    • built-in conductivity sensor and control software to optimize energy efficiency and maintenance costs, with constant performance throughout cylinder life.
    • automatic water drain after 3 days of inactivity

  • Video



Documentation

Technical

  • Quick Guide
    Code Description Language Date * Release
    Code +040000075

    Description humiSteam Basic- UEY hydraulic quick guide

    Language ENG  ITA

    Date 09/11/2009

    Release 1.0

  • Manuals
    Code Description Language Date * Release
    Code +0300042SP

    Description humiSteam Basic

    Language POR  SPA

    Date 21/11/2019

    Release 1.6

    Code +0300042IE

    Description humiSteam Basic

    Language ENG  ITA

    Date 21/11/2019

    Release 1.6

    Code +0300042FD

    Description humiSteam Basic

    Language FRE  GER

    Date 21/11/2019

    Release 1.6

    Code +08C0042EZ

    Description humiSteam 加湿器/humidifiers

    Language CHI  ENG

    Date 16/10/2017

    Release 1.0

    Code +030220311

    Description Humiset

    Language ENG

    Date 01/09/2014

    Release 2.2

    Code +03U0042EN

    Description humiSteam Basic

    Language ENG

    Date 10/05/2013

    Release 1.3

    Code +03C0042EZ.pdf

    Description humiSteam 加湿器/humidifiers

    Language CHI  ENG

    Date 10/05/2013

    Release 1.3

    Code +0300043EN

    Description humiSteam Basic- Addendum manual

    Language ENG

    Date 02/12/2009

    Release 1.0

    Code +030220632

    Description humiSteam Basic: manual del usario/ user manual

    Language ENG  SPA

    Date 20/01/2009

    Release 2.3

    Code +030220631

    Description humiSteam Basic

    Language FRE  GER

    Date 20/01/2009

    Release 2.3

    Code +030220630

    Description humiSteam Basic: User manual/ Manuale d’uso

    Language ENG  ITA

    Date 20/01/2009

    Release 2.3
