MasterCase2

MC2*

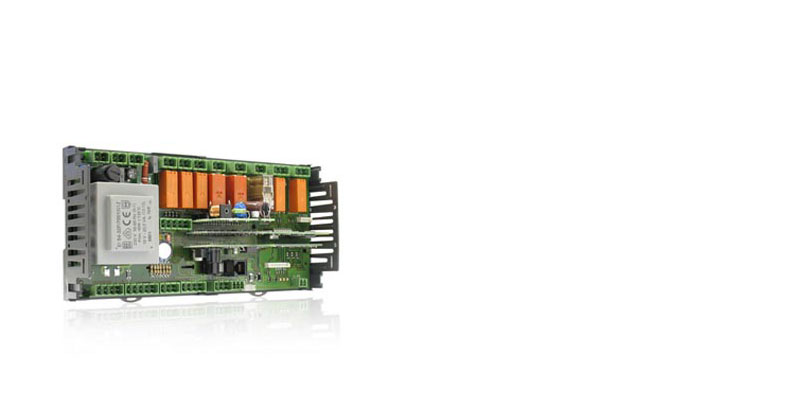

MasterCase2
  • General characteristics

    MasterCase2 represents the most advanced solution for the complete control of refrigerating utilities, such as showcases and cold rooms, and is therefore ideal for applications in supermarkets. It combines the management of PT1000 probes (see the corresponding model) and power relays for the direct management of the electrical loads.
    Up to 7 probes can be connected, configured as NTC, 0 to 5 V (PT1000) 4 to 20 mA, while there are 8 relay outputs for the control of compressors/solenoid valves, evaporator fans, defrost, alarm, hot wire, lights, aux1 and aux2. MasterCase2 can control a PWM on/off electronic expansion valve or alternatively, with the optional driver board, an expansion valve with stepper motor, such as the CAREL E2V.
    MasterCase2 can be connected in a local network for the master/slave management of multiplexed showcases. A series of optional accessories is available for installation on the MasterCase2, such as: clock board and serial boards for interfacing to a supervisory system.


Documentation

Technical

  • Manuals
    Code Description Language Date * Release
    Code +03P220221

    Description MasterCase 2

    Language ENG

    Date 28/10/2005

    Release 1.0


Commercial

  • Brochure
    Code Description Language Date * Release
    Code +302240374

    Description Retail sistema...the one solution

    Language SPA

    Date 07/02/2007

    Release 4.1

    Code +302240371

    Description Retail sistema...the one solution

    Language ENG

    Date 09/10/2006

    Release 4.0

    Code +302239434

    Description Soluciones para muebles y cámaras frigoríficas

    Language SPA

    Date 01/10/2006

    Release 1.0

    Code +302239432

    Description Solutions pour comptoirs et cellules frigorifiques

    Language FRE

    Date 01/10/2006

    Release 1.0

    Code +302239431

    Description Solutions for showcases and cold rooms

    Language ENG

    Date 01/10/2005

    Release 1.0
