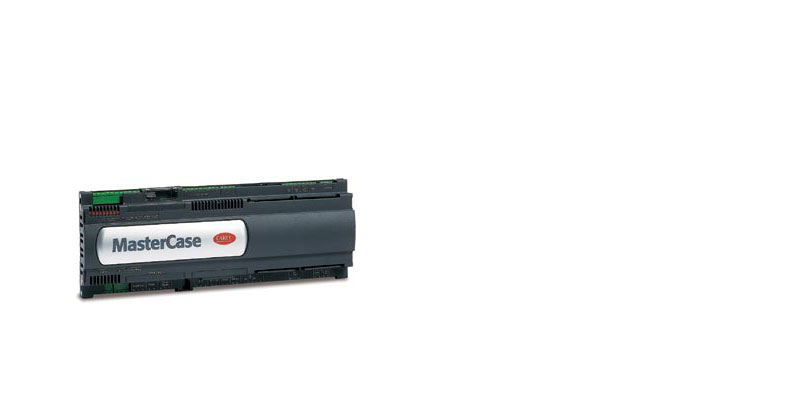

MasterCase

MGE*
MasterCase

  • General characteristics
    The motherboard, which contains the microprocessor, featuring advanced electronic technology (MGE® technology), and the "power" part with the relay outputs.
    The I/O consist of 3 analogue inputs for NTC temperature probes (plus 1 NTC and 1 ratiometric pressure probe in the version for electronic valves), 5 programmable digital inputs, 7 relay outputs, 2 of which auxiliary that can be configured as desired.
    The powerful software embedded in MasterCase allows complete and precise management of all the types of refrigeration cabinets, as well as considerable energy savings. Each MasterCase can be configured either as the master or as a slave for the creation of a local network for the management of multi-evaporator utilities (multiplexed cabinets) allowing the synchronisation of defrosts, the sharing of the values read by the probes, as well as the copying of the programmed parameters from the master to the slaves (download).
    In the MasterCase version for electronic valves (MGE0000020), the driver card for the electronic valve is soldered directly onto the motherboard


Documentation

Technical

  • Technical Leaflets
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +050000191

    		 Description MGE0000010/MGE0000020 - MasterCase

    		 Language FRE  POR  SPA

    		 Date 01/08/2006

    		 Release 1.4

    Code +050000190

    		 Description MGE0000010/MGE0000020 - MasterCase

    		 Language ENG  GER  ITA

    		 Date 01/08/2006

    		 Release 1.4

  • Manuals
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +030220221

    		 Description MasterCase

    		 Language ENG

    		 Date 30/10/2006

    		 Release 1.2


Commercial

  • Brochure
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +302240374

    		 Description Retail sistema...the one solution

    		 Language SPA

    		 Date 07/02/2007

    		 Release 4.1

    Code +302240371

    		 Description Retail sistema...the one solution

    		 Language ENG

    		 Date 09/10/2006

    		 Release 4.0

    Code +302239434

    		 Description Soluciones para muebles y cámaras frigoríficas

    		 Language SPA

    		 Date 01/10/2006

    		 Release 1.0

    Code +302239432

    		 Description Solutions pour comptoirs et cellules frigorifiques

    		 Language FRE

    		 Date 01/10/2006

    		 Release 1.0

    Code +302239431

    		 Description Solutions for showcases and cold rooms

    		 Language ENG

    		 Date 01/10/2005

    		 Release 1.0
