- Smart solution based on ir33+ logic and experience
- Intuitive user interface
- Flexible IP65 box ready for additional components
- Modbus and Carel protocols with auto-recognition
- DIN rail for fast wall mounting

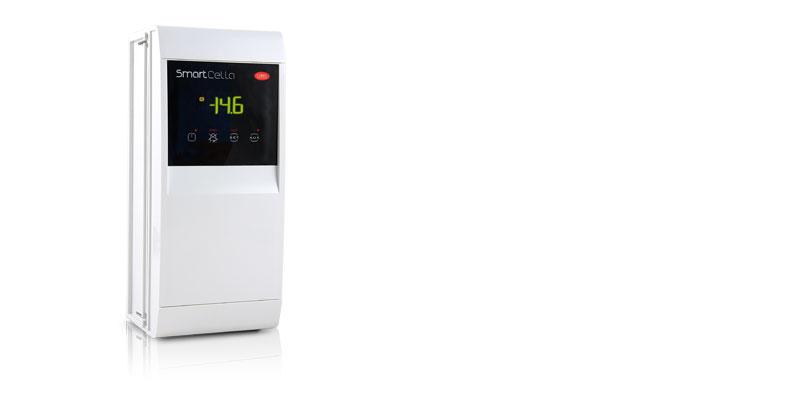

SmartCella is based on a standard controller integrated in an industrial designed IP65 box. Together with UltraCella and MasterCella, completes and enhances the CAREL offering for cold rooms. In terms of P/Ns, only a couple of models directly related to number of loads to handle, to probes and features necessary to target applications: model with 1 relay for normal temperature NT cold rooms, model with 4 relays for low temperature LT cold rooms.
- Up to 4 output relays (compressor 16A/2HP in according to the model, defrost 16A, evaporator fans 8A and auxiliary output 8A for additional features)
- 5 analog inputs (2 x NTC + 3 x NTC / digital inputs)
- 1 serial with CAREL / Modbus (slave) protocol with auto-recognition
- SmartCella satisfies all the cold room user, in all the working phases: from installation to commissioning for installers, to daily use for end users.
In installation phase, installers can take advantage of:
- Track for DIN rail for fast wall mounting
- I/O board of ir33 DIN control, more suitable for installation inside box than standard panel controller
- Standard and already well known ir33 DIN wiring diagrams
- SmartCella is easy to commission and use in daily work thanks to:
- The same ir33+ logic about regulation algorithms, navigation and parameters
- Simple and user-friendly user interface, with touch keypad and large buttons; feature/button matching is the same as ir33+.
Display is large and bright (+30% compared to ir33) and it shows contextual messages on during navigation.
SmartCella is easily expandable with additional contents thanks to the choice to use the UltraCella expansion module box. In addition to providing IP65 protection and family-feeling with the UltraCella platform, this choice allows free space available inside the box for:
- External relays
- Auxiliary terminals
and to have add-on contents coming from the UltraCella platform:
- Ultra EVD module
- Ultra Power module
SmartCella is compliant with HACCP International for food safety – first instance in Italy in the family of electronic devices for refrigeration equipment – as statement of its suitability to ensure quality of preserved food.
- Technical Leaflets * Entries are ordered by date
Code Description Language Date * Release Code +0500091IE Description SmartCella - Controllo elettronico per celle frigorifere/Electronic controller for cold rooms Language ENG ITA Date 14/10/2016 Release 1.3 Code +0500091FD Description SmartCella - Commande électroniques pour chambres froides / Elektronische Steuerung für Kühlräume Language FRE GER Date 03/05/2016 Release 1.2 Code +0500090ML Description SmartCella - Controllo elettronico per celle frigorifere/Electronic controller for cold rooms Language ENG FRE GER ITA POR SPA Date 26/04/2016 Release 1.2
- 2D/3D drawings * Entries are ordered by date
Code Description Language Date * Release Code 2d-3d SmartCella Description 2D-3D drawings Language ALL Date 10/11/2015 Release R0
- Manuals * Entries are ordered by date
Code Description Language Date * Release Code +0300084FR Description SmartCella/SmartCella 3PH Contrôle électronique pour chambres froides Language FRE Date 28/03/2017 Release 1.2 Code +0300084EN Description SmartCella/SmartCella 3PH Electronic controllers for cold rooms Language ENG Date 28/03/2017 Release 1.2 Code +0300084ES Description SmartCella/SmartCella 3PH Controladores electrónicos para cámaras frigoríficas Language SPA Date 28/03/2017 Release 1.2
- Brochure * Entries are ordered by date
Code Description Language Date * Release Code +3000121EN Description Cella Range 3PH Three-phase stand-alone & modular cold room solutions Language ENG Date 12/05/2017 Release 1.0 Code +3000121ES Description Cella Range 3PH Soluciones trifásicas stand-alone y modulares para cámaras frigoríficas Language SPA Date 12/05/2017 Release 1.0 Code +3000121FR Description Cella Range 3PH Solutions triphasées stand-alone et modulaires pour chambres froides Language FRE Date 12/05/2017 Release 1.0 Code +3000106EN_chillventa Description On Show - Chillventa 2016 Language ENG Date 08/10/2016 Release 2.0 Code +3000088EN Description SmartCella The essential solution for your small cold rooms Language ENG Date 24/07/2014 Release 1.0 Code +30Z0088EN Description SmartCella The essential solution for your small cold rooms Language ENG Date 24/07/2014 Release 1.0
