MC Multizone

MC*
MC Multizone
MC Multizone MC Multizone

  • General characteristics

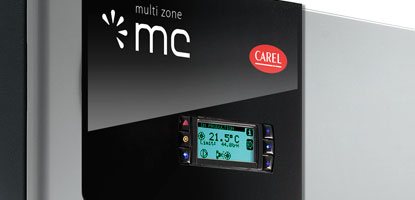

    MC is an atomizing adiabatic humidifier that uses the energy of compressed air to atomize water in micrometric droplets. The system consists of a cabinet equipped with an electronic controller and interface display, which, thanks to two independent networks of water and air piping, feeds the nozzles in the optimum conditions of flow and pressure. Inside the nozzle, the energy of the air is used to create an emulsion of water with droplets of the diameter of approximately 10 µm, allowing a rapid absorption. This feature makes MC the most suitable product for installations directly in the environment, with use in the textile industry and in the processing of wood and paper, in cellars and in refrigerating rooms, where compressed air is almost always available. However, in the absence of a pre-existing compressed air line, it is also advantageous to install an MC system equipped with a dedicated air compressor. MC can also be installed in the duct, as long as there is enough space for the absorption of the jet of atomized water.
    MC can be used both with demineralized water (to avoid sending salts into the environment) and with mains water: the nozzle is equipped with a particular cleaning needle inside, periodically activated by a spring, which cleans the orifice from any deposits of mineral salts. Thanks to the drainage solenoid valve placed at the end of the line, it is possible to drain the unit when idle and to wash it periodically. In favor of hygiene, a UV lamp (optional) is also supplied, to be installed immediately upstream of the cabinet.
    MC is available with a 16 gallons/h or 61 gallons/h cabinet. You can use the master + slave solution when you want to add another area with an independent set point (up to 6 areas) or when you want to increase the humidification capacity (over 61 gallons/h) in a single area. The nozzles are available in various capacities: 2,7 – 4,0 – 5,4 – 6,8 – 10,0 l/h. The choice of the nozzle depends on how you want to divide the total humidification capacity.
  • Plus

    - very fine water-air emulsion, suitable for humidification and direct cooling in the environment thanks to its rapid absorption
    - possibility to use master + slave, to increase capacity of for multi-area applications
    - possibility to choose the size of the nozzle in order to better divide the humidification load
    - nozzle with self-cleaning needle, can be used also with mains water.



Documentation

Technical

  • Quick Guide
    Code Description Language Date * Release
    Code +040000040

    Description MC Multizone: quick guide

    Language ENG  ITA

    Date 16/12/2014

    Release 1.1

  • Technical Leaflets
    Code Description Language Date * Release
    Code +050000915

    Description Line replacement procedure

    Language ENG  FRE  GER  ITA  SPA

    Date 28/01/2010

    Release 1.0

  • Manuals
    Code Description Language Date * Release
    Code +030221981

    Description MCmultizone: atomising humidifiers

    Language ENG

    Date 09/09/2020

    Release 2.4

    Code +030221982

    Description MCmultizone: humidificateurs atomiseurs

    Language FRE

    Date 09/09/2020

    Release 2.4

    Code +030221984

    Description MCmultizone: humidificadores y atomizadores

    Language SPA

    Date 09/09/2020

    Release 2.4

  • BIM files
    Code Description Language Date * Release
    Code BIM files mc multizone

    Description

    Language ALL

    Date 11/03/2020

    Release R0


Commercial

  • Brochure
    Code Description Language Date * Release
    Code +3000018EN

    Description Humidity matters! CAREL humidifiers, a solution for every need

    Language ENG

    Date 15/09/2020

    Release 4.1

    Code +3000018ES

    Description ¡La humedad es importante! Humidificadores CAREL, una solución para cada necesidad

    Language ENG  SPA

    Date 15/09/2020

    Release 4.1

    Code +3000018FR

    Description L’humidité est importante! Les humidificateurs CAREL, une solution pour chaque application

    Language FRE

    Date 15/09/2020

    Release 4.1

    Code +3000193ES

    Description Humectación directa Soluciones avanzadas para ambientes industriales y comerciales

    Language SPA

    Date 15/11/2019

    Release 1.1

    Code +3000193EN

    Description Direct humidification: Advanced solutions for industrial and commercial environments

    Language ENG

    Date 15/11/2019

    Release 1.1

    Code +3000203ES

    Description Industria del vino: Soluciones para el control de la temperatura y la supervisión

    Language SPA

    Date 04/11/2019

    Release 1.0

    Code +3000203EN

    Description Wine industry: Temperature control and supervisory solutions

    Language ENG

    Date 04/11/2019

    Release 1.0

    Code +3000173EN

    Description Solutions for the tobacco industry Excellence in humidity control and monitoring

    Language ENG

    Date 18/04/2018

    Release 1.0

    Code +302240441

    Description mc multizone simple and robust, ideal for large industrial environments

    Language ENG

    Date 30/03/2015

    Release 2.0

    Code +302240442

    Description mc multizone simple et robuste, idéal pour les grands locaux industriels

    Language FRE

    Date 30/03/2015

    Release 2.0

    Code +302240444

    Description mc multizone sencillo y robusto, ideal para los grandes ambientes industriales

    Language SPA

    Date 30/03/2015

    Release 2.0

    Code +30U0018EN

    Description Humidity matters! CAREL solutions for your humidification needs ( USA)

    Language ENG

    Date 01/10/2012

    Release 2.0

    Code +302239432

    Description Solutions pour comptoirs et cellules frigorifiques

    Language FRE

    Date 01/10/2006

    Release 1.0

    Code +302239434

    Description Soluciones para muebles y cámaras frigoríficas

    Language SPA

    Date 01/10/2006

    Release 1.0

    Code +302235384

    Description soluciones para la industria del tabaco

    Language SPA

    Date 15/01/2006

    Release 1.0

    Code +302235382

    Description solutions pour l’industrie du tabac

    Language FRE

    Date 15/01/2006

    Release 1.0

    Code +302239431

    Description Solutions for showcases and cold rooms

    Language ENG

    Date 01/10/2005

    Release 1.0


Local Information

  • Local Information
    Code Description Language Date * Release
    Code +03U400015

    Description MC Room Atomizing Humidification System Manual

    Language ENG

    Date 01/12/2020

    Release 2.0

    Code +3000018EN

    Description Humidity matters! CAREL humidifiers, a solution for every need

    Language ENG

    Date 15/09/2020

    Release 4.1

    Code +3000018ES

    Description ¡La humedad es importante! Humidificadores CAREL, una solución para cada necesidad

    Language ENG  SPA

    Date 15/09/2020

    Release 4.1

    Code +03U400025

    Description MC Duct / AHU Atomizing System Manual

    Language ENG

    Date 12/01/2020

    Release 4.0

    Code +30U0018EN (USA)

    Description Humidity Matters Brochure

    Language ENG

    Date 26/09/2019

    Release 4.0

    Code +03U221635

    Description MC specification in PDF Format

    Language ENG

    Date 15/04/2014

    Release 2.2

    Code +03U221635_Word

    Description MC specification in Word doc Format

    Language ENG

    Date 15/04/2014

    Release 2.2

    Code +30U240551

    Description Humidity control in printing applications

    Language ENG

    Date 05/27/2008

    Release 1.0
