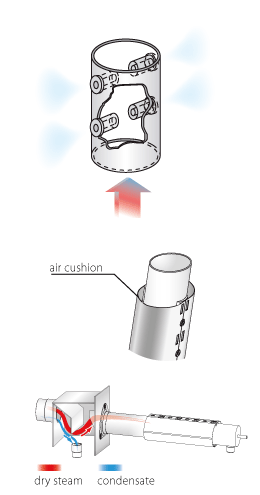

Short absorption distance
To achieve a very short not-wetting distance and ensure only dry steam is delivered into the AHU/duct,
the nozzles take steam from the inside of the pipe, away from the wall where condensate may form.
Condensate formation reduction
Air cushion insulation made in AISI 304 steel structure isolates the steam pipe from direct contact with the air in the AHU/duct, thus achieving a 30% reduction in condensate formation.
Only dry steam introduced into the distribution pipe
Condensate separator manifold
On single pipe versions the manifold also acts as a condensate separator.
The louver ensures that the steam follows a specific path, separate from any condensate, which is drained through the discharge terminal. Only dry steam enters the distribution pipes.

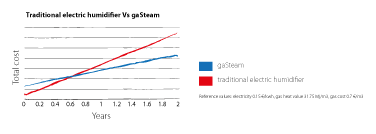

Estimated savings of up to 70% in energy costs are possible when using gas rather than electricity.
gaSteam is therefore the ideal choice for applications where steam is needed many
hours a day, bringing significant savings in operating costs and a rapid return on investment.
Heat exchanger featuring an exclusive design that guarantees high efficiency (94-96%) and easy maintenance.
Made from stainless steel to ensure long life, even in heavy-duty operation.
Safety and flame control
Maximum efficiency and safety ensured by the premix burner with proportional gas valve.
The control system connected to the electrical panel directly detects the flame,
thus guaranteeing maximum reliability and safety. In addition, in the event of faults the control system attempts to reignite the flame or closes the safety valve, providing an alarm signal.
